دستگاه‌ برش‌ لیزر‌ فیبر‌ فلز‌ CNC‌ مدل‌ کارا ولدینگ‌ 2060‌HARD‌ULTRA

ابعاد

ابعاد میز کار: 2000×4000/2000×6000/2000×8500 mm

Frame: Metal sheet, Moulded with strengthening, Welded from thick-walled steel tube

Cabinet-type protection: Yes

اپتیک:

نوع لیزر: Raycus/IPG

قدرت لیزر: 20000-120000 W

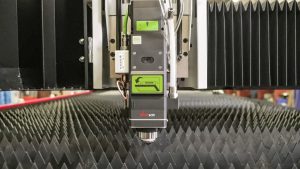

Laser head: BOCI BLT 6

مکانیک ها:

XY Engine power: 1300/3000 W

Structure of XY axis: Guides HIWIN / Helical rack LEAN, 25 mm / 35 mm

Structure of Z axis: HIWIN Guides 20 mm / Ball Screws 25 mm

Height sensor: Automatic capacitive

Grease system: Automatic centralized, semi-automatic

حداکثر سرعت حرکت: 100/120 m/min

Max. working speed: Depends on the material

Additional gas: air, argon, nitrogen, Oxygen

Repositioning accuracy: ±0.02 mm

Z Engine power W: 750 W

سخت افزار

Power electrics: Siemens

نرم افزار: FSCUT 8000

Height سیستم کنترل: BCS100

Type of end sensors: Inductive

سیستم کنترل: EtherCAT BUS FSCUT8000C

Automatic change of work tables: Yes
